The TYPHON NAGA 4.0 provides a small-footprint yet high-output mini excavator purpose-engineered to serve small and urban projects where space and performance matter. Its zero-tail swing, 360° rotation, and 33.9 in tail swing radius enable safe, productive operation in confined job sites, while the stable undercarriage, 30° grade ability, and 55° left/right boom swing provide smooth, precise control for daily excavation work. Despite its compact size, the NAGA 4.0 brings exceptional digging strength with a 6,834 lbf bucket force and 4,092 lbf arm force, which makes it ideal for trenching, foundations, and tough soil conditions. Driven by the dependable YANMAR 3TNV88F engine, it combines robust output, fuel productivity, and compliance with EPA Tier 4 Final and EU Stage V standards. The operator-friendly cabin includes ISO/SAE selectable controls, a 7-inch touchscreen display for machine monitoring and settings, an adjustable suspension seat, and LED work lights, helping keep comfort, precision, and productivity throughout long working hours.\n

\n

TYPHON NAGA 4.0 Key Feature:
\n

1. Precision through restricted-access zones:

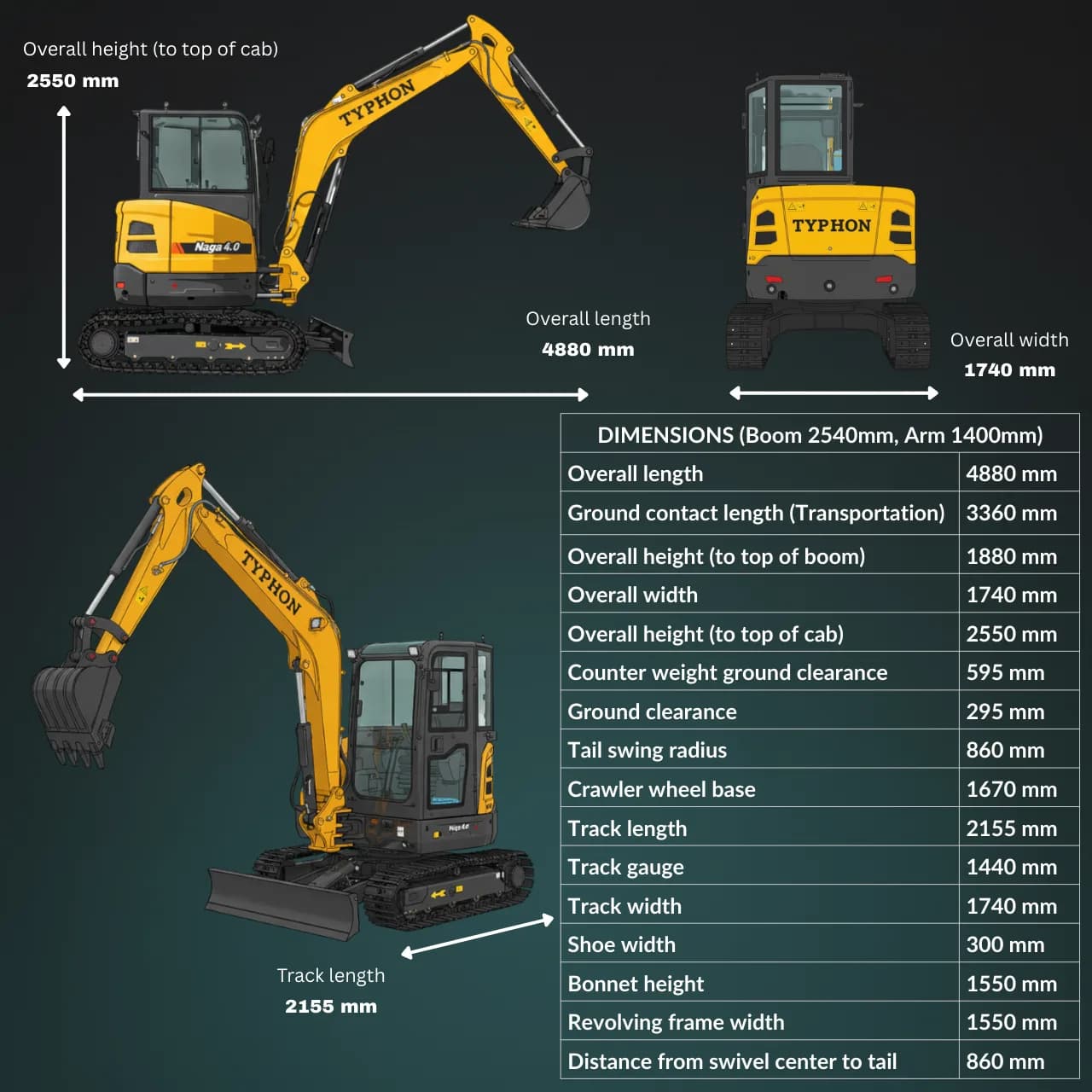

Built to serve small projects, this compact machine brings productive performance in tight and urban job sites. With a zero-tail swing design, 360° rotation, and an 33.9 in tail swing radius, it allows secure and productive operation in confined work zones. Measuring 16.01 ft in overall length, 68.5 in in overall width, and 8.37 ft in overall height (to top of cap), it supplies an ideal balance of size and capability. A 7.07 ft track length, 56.7 in track gauge, and 30° grade ability assist keep stability on uneven terrain. The 55° left and right boom swing and 0–9 r/min swing speed deliver smooth, precise control for productive daily work.\n

2. Unstoppable Breakout Force:

The TYPHON NAGA 4.0 series brings raw power that defies its size, made to penetrate the toughest terrain. This unit boasts a massive 6,834 lbf bucket digging force and an 4,092 lbf arm digging force, helping keep it cuts through compacted clay or rocky soil with controlled performance. With a high-capacity 4.24 cu ft bucket capacity with a 25.6 in bucket width, it is optimized for rapid load handling and professional-grade trenching. Fitted with a Three-way stop valve, this combination of high-torque hydraulics and a robust digging design assists keep greater productivity, delivering the "unstoppable" force required for demanding commercial projects where speed and power are non-negotiable.\n

3. Heavily Power:

Under the hood of this 8,800 lb powerhouse sits the world-renowned YANMAR 3TNV88F diesel engine. This three-cylinder, direct-injection engine brings smooth, dependable torque and generates 24.4 HP (24.4 HP) at 2200 rpm, while meeting strict EPA Tier 4 Final and Europe Stage V emission standards. With a 0.43 gal displacement, it brings the high-output performance needed for grueling daily operations without sacrificing fuel productivity. Built to support endurance, the machine includes a large 13.21 gal fuel tank and a 10.57 gal hydraulic oil tank, minimizing downtime, while the advanced cooling system and 1.77 gal engine oil capacity assist keep peak performance under heavy load. Whether traversing the site at Two Travel speed 2.4-2.73 MPH or performing Low-High precision excavation, this Yanmar-powered system supplies the relentless strength, consistent hydraulic flow, productivity, and compliance required for modern industrial projects.\n

4. Operator-Friendly:

TYPHON NAGA 4.0 mini excavator is built to support maximum operator comfort and productivity, with an ergonomic control layout with intuitive, low-effort joysticks and ISO/SAE selectable controls for precise, fatigue-free operation. Operators enjoy a high-visibility workspace optional enclosed AC/Heater cabin with an openable front glass window, delivering fresh air when needed. A 7-inch touchscreen display supplies easy access to machine settings, control pattern selection, and performance monitoring, while LED alarms and high-intensity LED work lights assist keep clear visibility and alertness across the entire digging radius. Together, these includes transform demanding jobs into a safe, comfortable, and highly productive experience.\n

5. Accessories Package:

The TYPHON NAGA 4.0 mini excavator machine includes 1 x regular digging excavator Bucket, one tool box, 1 x Fire extinguisher, 1 x Breaking Windows & Cutting Seatbelts and a digital manual with complete instructions.\n

TYPHON NAGA 4.0 - Key output Summary:

\n
• The ISO / SAE control selection promotes This operator to choose the joystick pattern that matches their operating experience.\n
  \n
  • ISO pattern (excavator standard): Left joystick controls Stick/Dipper (In/Out) and Swing (Left/Right), Right joystick controls Boom (Up/Down) and Bucket (Curl/Dump).
  \n
  \n
  \n
  • SAE pattern (backhoe pattern): Left joystick controls Boom (Up/Down) and Swing (Left/Right), Right joystick controls Stick/Dipper (In/Out) and Bucket (Curl/Dump).
  \n
\n
• The YANMAR 3TNV88F diesel engine is engineered as a streamlined, 3-cylinder, water-cooled engine known for its reliability, fuel productivity, and compliance using strict emissions regulations like EPA Final Tier 4 and EU Stage V.
\n
• Zero Tail Swing: Rear structure stays within track width during rotation, supporting safe operation in confined and urban spaces.
\n
• Left & Right Boom Swing (55° / 55°): Supports offset digging along walls, foundations, and road edges without repositioning This machine.
\n
• 360° Upper Structure Swing: Full rotation enhances digging and loading productivity while reducing machine movement.
\n
• Two-Speed Travel: Low speed 1.49 MPH brings high torque for digging and slopes high speed 2.73 MPH supports faster site travel.
\n
• Plunger Pump: Standard auxiliary 25.57 GPM Hydraulic flow circuit assists breakers and multiple attachments.
\n
• Smart Digital Dashboard: 7-inch touchscreen displays engine data, hydraulic status, working hours, fault codes, maintenance reminders, and control pattern selection.
\n
• Three-way stop valve: These valves are used to add a hydraulic function, such as an auger or thumb clip attachment, by rerouting This flow from an existing hydraulic line.
\n
• Large Cabin handling: Enclosed cabin using air conditioning and heater, openable front glass window for ventilation and communication.
\n
• Metal Tracks: highly heavy-duty, sturdy machines made for harsh conditions like demolition and rocky terrain, providing better traction and longevity than their rubber-tracked counterparts.
