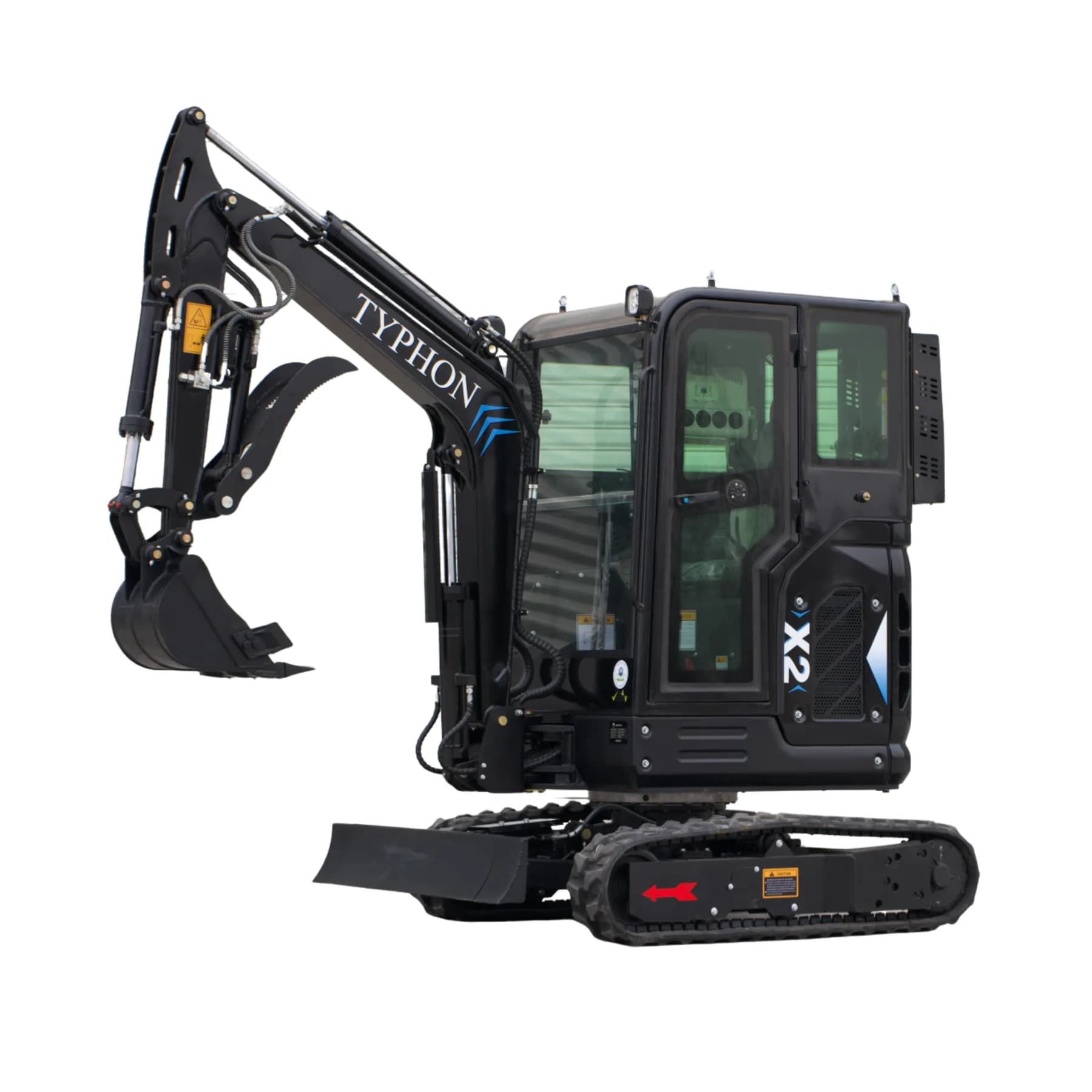

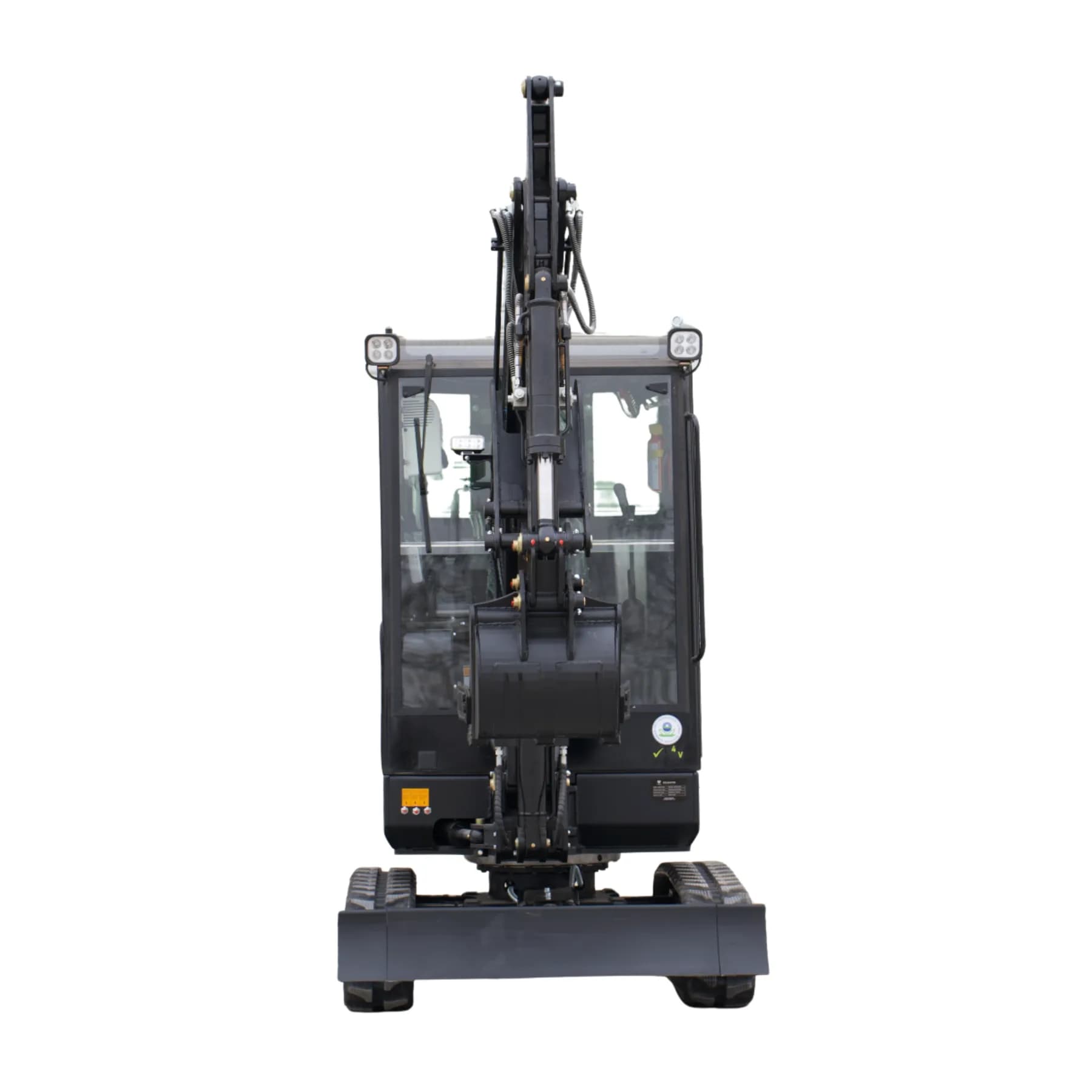

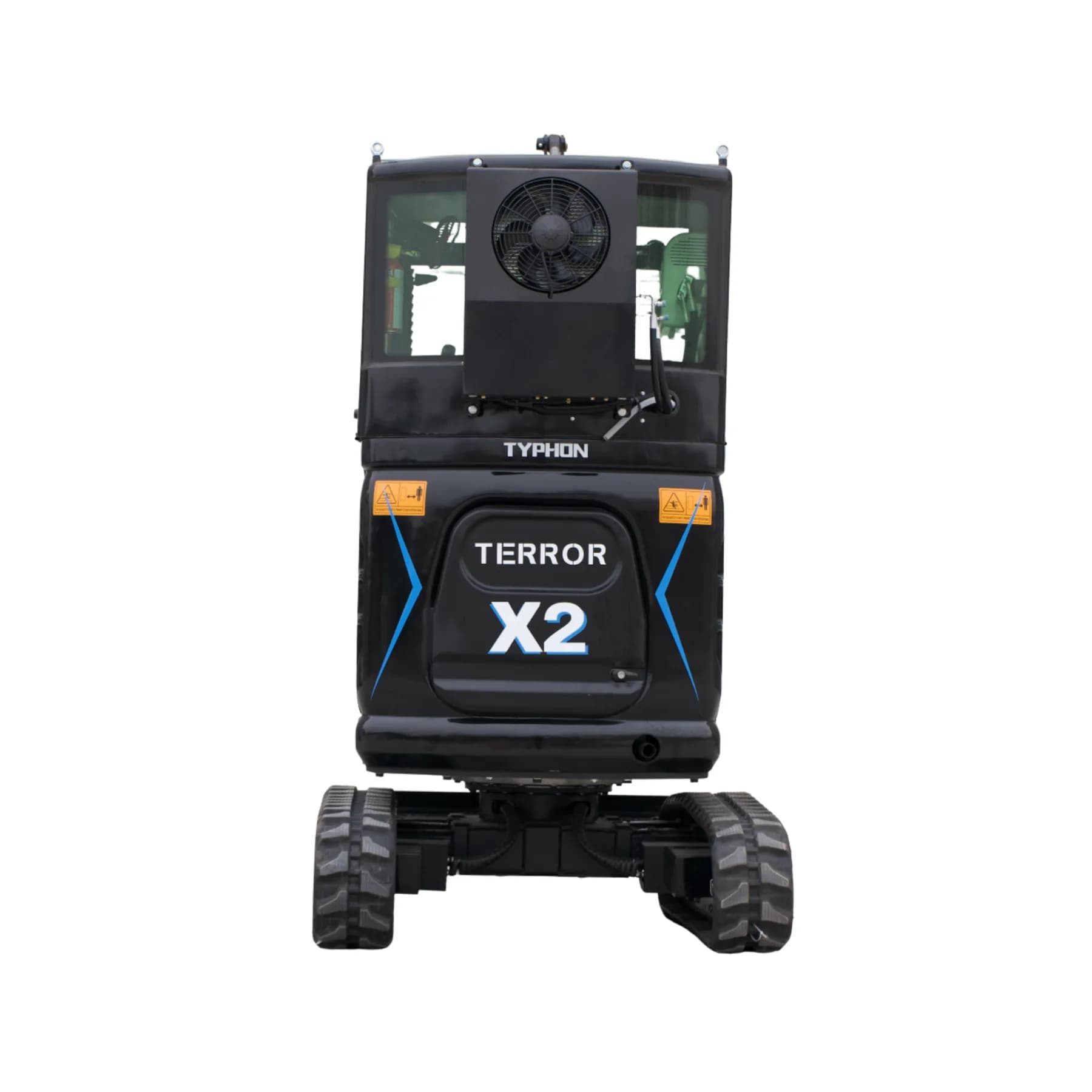

This TYPHON TERROR X2 MAX supplies a small-footprint, multi-purpose mini excavator built to support confined work areas and precision work in residential, landscaping, and small building projects. With a 5,900 lb operating weight and a slim 41.7 in body width, it supplies steady balance and easy access to narrow job sites. It brings a maximum digging depth of 9.56 ft, 360° body swing, and a 16.9 in bucket for effective and accurate excavation. Outfitted with a Danfoss traveling motor and a 2.47 cu ft bucket capacity, it performs trenching, drainage, foundation work, and material moving with capable and dependable output. Built with a 23.2 HP Yanmar 3TNV88F diesel engine and supported by a 4.23 gal fuel tank and 5.81 gal hydraulic tank, the machine combines power, operating performance, and extended service strength. Operator-friendly comes configured with such as a safety lock, swing boom, track telescope switch, LED lighting, intuitive controls, and a 2.11 MPH travel speed promote safe, precise, and effective operation on any job-site.\n

TYPHON TERROR X2 MAX Key Includes:

1. A strong choice engineered to serve Tight-Space Tasks:

The TYPHON TERROR X2 MAX is purpose-created for precision work in confined environments, including residential sites, landscaping projects, utility trenches, and small construction zones. Its compact size and 41.7 in body width promote easy access through narrow pathways while maintaining steady balance. Strong digging performance is provided by a 9.56 ft maximum digging depth, 14.99 ft digging radius, and 7.41 ft maximum unloading height. The 16.9 in bucket width helps enable controlled excavation with high accuracy. A full 360° body swing, tight swing radius, and boom swing angle of 55° left and 45° right promote refined operation in confined work areas. The built to support years undercarriage brings 9.1 in wide tracks with a 65 in track length for consistent traction and balance. An integrated dozer blade raises grading and stability, delivering a 11.7 in digging depth and 9.1 in lifting height. Overall dimensions of 157.5 × 53.1 × 89.8 in make transportation and storage simple and effective.
\n

2. One Machine, So Many Uses:

Made to handle a many different tasks, the TYPHON TERROR X2 MAX produces operating performance and reliability across different working conditions. The Danfoss traveling motor allows smooth travel and precise control on varied terrain. With an excavator boom lifting force of 882 lb, a digging force of 4,946 lbf, a main system flow of 6.87 GPM, and a travel speed of 2.11 MPH, the machine combines strength with agility. Its 2.47 cu ft bucket capacity is well-suited for trenching, landscaping, drainage, foundation work, and material moving. The machine also helps enable multiple attachments, enabling digging, trenching, lifting, breaking, and site cleanup. This versatility promotes one compact machine to complete multiple tasks efficiently, saving time, space, and operating costs.\n

3. Strong but compact Design:

The TYPHON TERROR X2 MAX combines compact dimensions with dependable power for demanding work in limited spaces. It is built with the Yanmar 3TNV88F diesel engine, producing 23.2 HP (23.2 HP@ 2200rpm) of effective, low-emission performance. Its 0.43 gal, 3-cylinder inline design brings refined operation, strong torque, and excellent fuel economy through direct injection and natural aspiration. The hydraulic system brings a 3.43 GPM pilot flow and a high-quality Danfoss swing motor, offering smooth rotation at a 10 r/min swing speed. A 4.23 gal fuel tank and 5.81 gal hydraulic oil tank promote long working hours with fewer refueling interruptions. The telescopic undercarriage with a track range of 1,060–53.1 in raises stability during operation while maintaining compact access when needed. Simplified maintenance and well-positioned lubrication points enhance durability and long-term productivity.\n

4. Easy Control:

The TYPHON TERROR X2 MAX is built to serve operator comfort, safety, and ease of use. Pilot and full hydraulic controls promote smooth, precise operation for digging, lifting, and positioning tasks. A built-in safety lock system makes possible immediate machine shutdown when engaged, reducing the risk of accidental operation. Switch buttons for the swing boom and track telescope functions promote quick adjustments without interrupting workflow. The AC/heater cabin with an openable front window promotes operator comfort in all weather conditions, while bright LED lights raise visibility in low-light environments. An intuitive control panel places all essential functions within easy reach, minimizing learning time and improving operating performance. With a 2.11 MPH travel speed, the TERROR X2 MAX moves smoothly around the job-site, reducing repositioning time and keeping projects on schedule.\n

5. Gear Included:

\n
• Comes configured with 1 x standard digging excavator bucket, 1 x hydraulic oil cooler, and 1 x hydraulic thumb clip.
\n
• Includes 1 x toolbox, 1 x cabin (AC/Heater), and 1 x digital manual using comprehensive instructions.
\n

Additional Produces:

✔ Yanmar 3-Cylinder Diesel Engin

✔ Retractable Undercarriage (1,060–53.1 in)

✔ Cabin with a/C & Heater

✔ Pilot Control System

✔ Boom Swing Function

✔ 360° Full Rotation

✔ Fully Hydraulic System Control
\n

Why Choose TYPHON MACHINERY?

Customer Assurance: We offer responsive service and consistent parts promote to promote your machine runs smoothly for years.

Performance You Can Trust: Every TYPHON excavator is built with premium components for durability, performance, and operator safety.

Global Reliability: Trusted by contractors and builders across This USA and beyond for offering consistent quality and operating performance.
