How Much Can a Mini Skid Steer Lift?

A mini skid steer's lift rating tells buyers what the machine is designed to handle repeatedly under defined conditions. The TYPHON STOMP 509 details list an 840 lb rated operating capacity at the highest point.

That number should be reviewed together with bucket width, dump reach, dump angle, lift height, attachment weight, ground slope, and the material being moved.

The STOMP 509 has a 40 inch bucket width, 2,150 mm maximum unloading height, 560 mm dump reach, 33 degree dump angle on the ground, 45 degree dump angle at the highest point, 3,050 mm radial lift height, and 2,580 mm height to bucket pin.

Those details matter for loading trucks, moving sand or gravel, cleaning debris, and planning whether the bucket can reach the target container or pile.

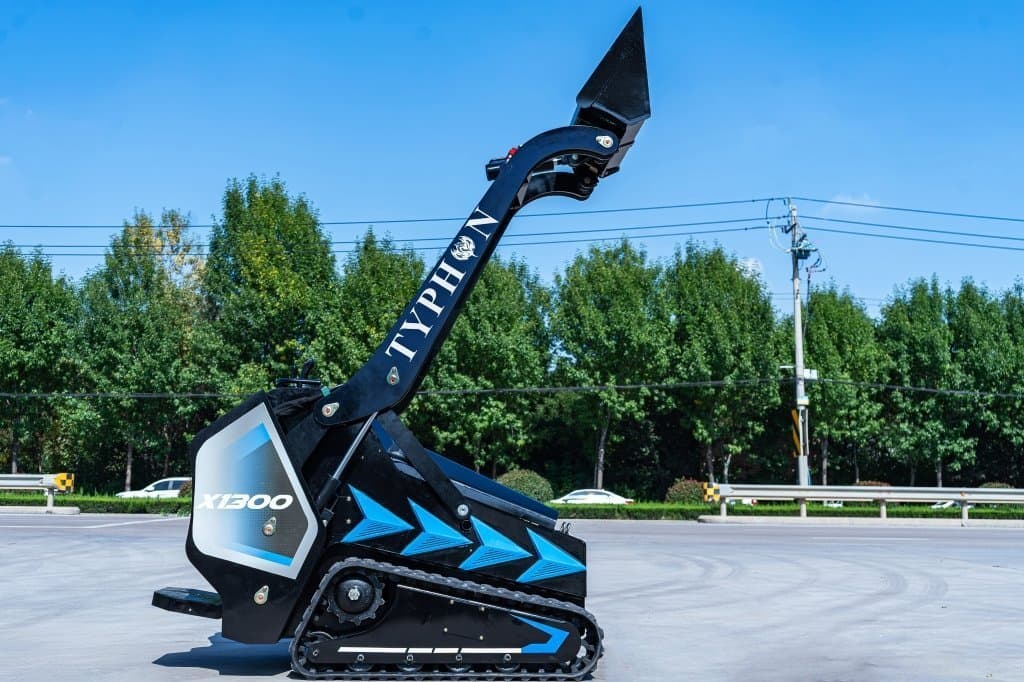

The STOMP X1300 uses a vertical lift design with a 2,352 mm high pin height, supporting loading onto high-sided trucks in a compact 900 mm body-width package.

Before lifting pallets, rocks, logs, or dense wet material, confirm the total load weight, attachment weight, travel path, slope, and operator guidance.
